Fiberglass Tub Bottom Rebuilding

STEP-2

1

OUTLINE TUB BOTTOM

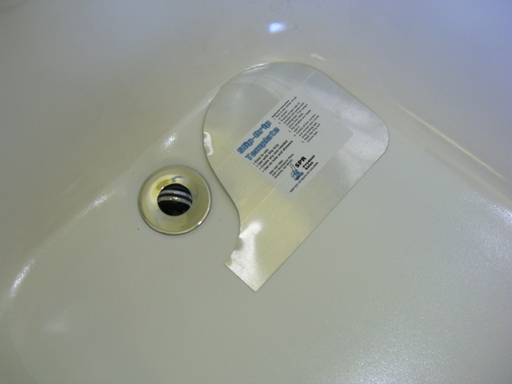

Use templates to make perfect corners

Drain End of Tub

USE MASKING TAPE TO OUTLINE TEMPLATES

Make Perfect Corners

2

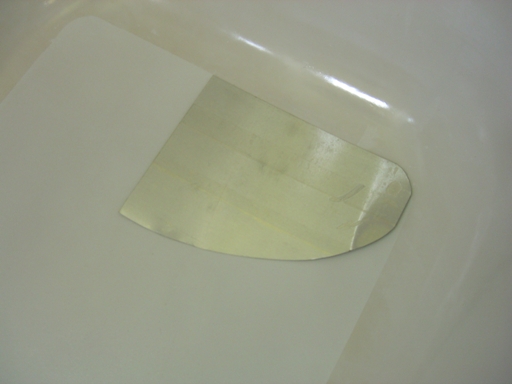

TRIM AROUND TEMPLATE WITH NEW RAZOR BLADE

AFTER TRIMMING, FLIP TEMPLATE OVER FOR OTHER SIDE OF DRAIN

3

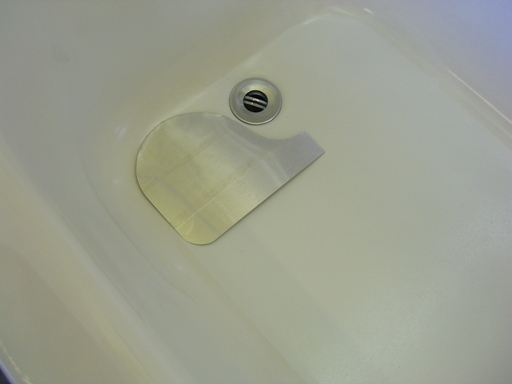

OPPOSITE SIDE OF DRAIN OUTLET

TRIM TAPE AROUND TEMPLATE CAREFULLY WITH NEW RAZOR BLADE

4

USE APPROPRIATE TEMPLATES

     Opposite End of Tub

DEPENDING ON THE SHAPE OF EACH TUBS BOTTOM

(SQUARE, OVAL ETC.)

Most Fiberglass tubs are are rather square

while others are oval shaped or rounded at the back end

5

DRAIN WRAP or FULL BOTTOM

USE FULL BOTTOM WHEN MAKING  REPAIRS AROUND DRAIN OUTLET

WHEN MAKING REPAIRS AROUND DRAIN OUTLET COVER ENTIRE BOTTOM

6

COVER THE DRAIN OUTLET WITH TAPE

FOLDING FIRST PIECE OF TAPE WITH A HANDLE MAKES REMOVING IT EASIER WHEN FINISHED

7

OPTIONAL PROTECTION

Small specks (splatters) from roller appear on side walls

if ROLLER is moved to fast or rolled from front to back wall of tub

while spreading the material evenly.

Moving roller slowly from end to end of tub

will prevent or minimize minute splatters on side walls and not require paper.

8

     TACK CLOTH

 © SPR Product Sales 2012
